This presentation documents the construction of a modified version of Lock Crowther's famous Twiggy Mk 2 trimaran

Sunday, February 14, 2021

Crossbeam Construction

above the bench on the shelf are clear cedar strips 13/16" x 1.5",
already scarfed together to form 30 foot lengths, 40 of them altogether
On the bench is a full length (30 foot) curved web cut to shape for the front face
of the beam, scarfed from 8' lengths of  1/2"ply

30 custom clamps used to clamp 5 strip lamination
onto the edge of the web,
one clamp per foot

5 strips laminated onto one web edge

it helps to have 2 people to speed up the application of epoxy
to both sides of all 5 strips, the web, and clamp them all in place
before the epoxy hardens

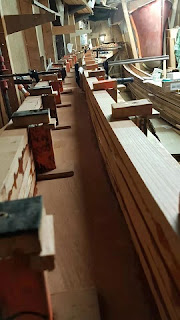

2nd row of clamps ready to laminate 5 more strips on the other
edge of the web


over 60 clamps altogether


the 2nd row of laminated strips clamped in place


leave the strips in the clamps overnight to fully cure the epoxy

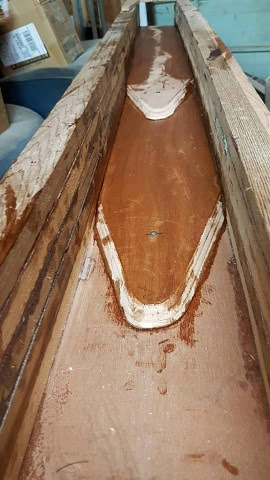

clamps removed, leaves a "U" shaped flange,
reinforcement ply is laminated in places where the mounting bolts will
pass through the beam.

the ends of the beam taper with 2 layers of 1/2" ply reinforcement
where the floats will connect
















Monday, June 1, 2020

Cabin construction begins!

 hull is now moved into garage #2 with more headroom
to accommodate cabin construction
 top half frames carefully scarfed onto hull bottom half frames
 care taken to check they are plumb

Friday, May 15, 2020

Sunday, May 10, 2020

Storage along aft cabin sides

 handy storage along edge of seating in aft cabin
steering cables will also pass thru this storage area

Friday, May 1, 2020

Head sink cabinet


curved shape leaves more floor space for showering

a nice continuation of the galley cabinets too,
counter edge trim to be added

 finished cabinet with trim

Wednesday, April 1, 2020

Forward and Aft Berth watertight Hatches/Storage

 1/16" neoprene gaskets installed,
stainless bolts into threaded inserts as hold downs,
these are the 2 hatches in the forward berth
 these watertight compartments can be used for storage by removing the hatch lids,
these are the 3 hatches in the aft berth




Wednesday, January 1, 2020

Floors

 floor supports glued to cabinetry front

 floors are 3/8" okoume ply with epoxy and 6 oz glasscloth both sides
